Series KV104

MCT Photodiodes

Features



  • High D* at high frequencies

  • Sizes 2.0 mm to 0.05 mm

  • Wavelength cutoff: 11.5, 8, 4.5 m m

  • Linear

  • Custom configurations available





Applications



The KV104 is designed to be used in systems and instruments which require a very sensitive, high speed detector:



  • Laser radar

  • Range finders

  • Trace gas spectroscopy

  • IR DIAL

  • Chemical aerosols detection

  • Heterodyne detection





Spectral Response



Description



Series KV104 MCT photodiodes are designed for wide electrical bandwidth applications. The maximum bandwidth is limited only by detector size, which determines RC time constant. A 100 m m pixel size detector is capable of 100MHz bandwidth operation or greater.



The spectral response characteristics are determined by the MCT bandgap selected. Standard ranges are 2-12 m m, 2 - 8 m m and 2 - 4.5 m m.



The responsivity at 11m m is greater than 4 Amp/Watt and D* (peak, 10kHz, 60FOV) is greater than 3 x 1010 Jones.



The standard package is a side-looking LN2 pour-filled Dewar with an AR coated ZnSe window and 8 hour hold time.



Series KV104: MCT Photodiodes



Series Configurations



Model*

Wavelength (m m)

Peak Cutoff

Size

(mm)

Bandwidth

(Hz)



D*(60FOV)

(Jones,typ)

Responsivity

(Amps/Watt)

KV104-1-A-3/11

10.5 >11.5

1 x 1

>20M

3E10

>4

KV104-1-A-3/12

11 >12.3

1 x 1

>20M

3E10

>4

KV104-1-A-3/10

9 >10

1 x 1

>20M

5E10

>4

KV104-0.5-A-3/11

10.5 >11.5

0.5 x 0.5

>50M

3E10

>4

KV104-0.25-A-1/11

10.5 >11.5

0.25x0.25

>100M

3E10

>4

KV104-0.1-1-E/11

10.5 >11.5

0.1 x 0.1

>500M

3E10

>4

KV104-0.5-A-2/8

7.2 >8

0.5 x 0.5

>30M

7E10

>3

KV104-1-A-7/11/TS

10.5 >11.5

1 x 1

>20M

3E10

>4

KV104-1-A-5/11/TS

10.5 >11.5

1 x 1

>20M

3E10

>4



*Key: model-size-package-window/wavelength/options



Options



  • Various cryogenic packages

- hold times up to 24 hours

  • Temperature sensor
  • Windows
    • ZnSe
    • ZnSe wedge
    • Ge
  • Coatings
    • 10.6 m m
    • 2 m m –13 m m
  • Cold-filters
  • Cold stops

    - 60° , 45° ,30°

  • Pixel sizes 2.0 mm to 0.05 mm
  • Matched amplifiers available

Custom Configurations on Request

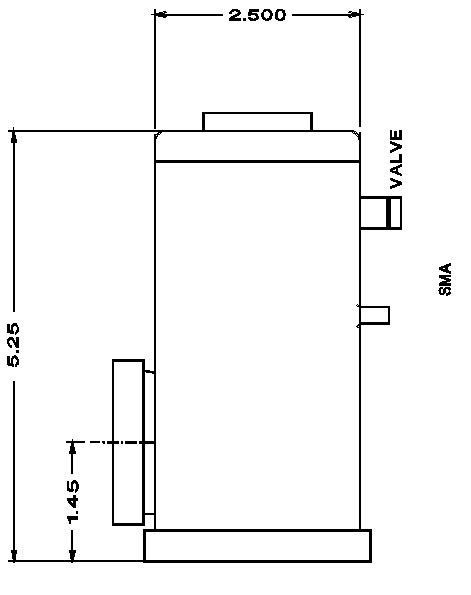

Standard Dewar Configuration

A
